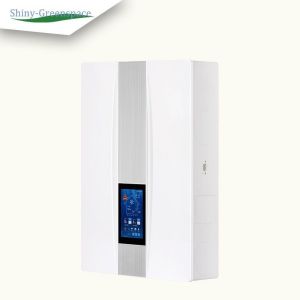

150m³/H Wall Mounted Air Purifier Ventilation System Class H13 Purification
Minimum order in large quantities
Product Specifications
| Attribute | Value |
| Model NO. | H503 |
| Layout | Coaxial |
| Openness | Closed |
| Installation | Vertical |
| Transmission Form | Gear |
| Type | Flange |
| Weight | 10kg |
| Noise Level | 53dB |
| Language | English |
| Purification Class | Class H13 |
| Transport Package | Wood |
| Specification | 660*455*148mm |
| Trademark | shiny-greenspace |
| Origin | China |
| HS Code | 8419500090 |
| Supply Ability | 200000 units |
Key Features
- Fresh airflow volume: 150m³/h
- Exhaust volume: 130m³/h
- Purification efficiency: >99.9%
- Noise value: <53dB(A)
- Heat exchange rate: Compatible with GB21087 standards
- Control mode: Intelligent operation/touch control/remote control
- Applicable space: 60m³ (calculated at 2 air changes per hour)
Advanced Air Purification Technology
The outdoor fresh air is purified and sent into the room while simultaneously discharging indoor stale air. This continuous circulation maintains clean, fresh indoor air quality.
High-Efficiency Filtration System
Features H13 HEPA filtration with triple-stage air purification, effectively intercepting PM2.5, bacteria, and particulate matter (0.3μm) with >99.9% efficiency. Cold catalyst adsorption achieves up to 90% formaldehyde removal.
Energy Efficient Design
Patented air cavity structure combines three effects in one unit for maximum energy efficiency. Consumes less than 1kWh in 24 hours of silent operation. Custom-designed fan achieves optimal balance of high airflow, low noise, and minimal energy consumption.
Temperature Regulation
Two-way heat exchange technology minimizes temperature differences between incoming and outgoing air, reducing heat loss in winter and maintaining comfortable cooling in summer.
Optimal Airflow Design
45-degree angled air ducts utilize fluid mechanics principles to create 360° circulation without dead zones. Air flows along walls for faster, more thorough purification throughout the space.
Oxygen Enrichment
Continuously introduces oxygen-rich outdoor air while filtering and purifying indoor air, effectively reducing carbon dioxide levels for healthier indoor environments.
