350m3/H Positive Pressure Ventilation Unit HVAC H902 Model

Model NO. : H902

Layout : Coaxial

Openness : Closed

Installation : Vertical

Transmission Form : Gear

Type : Single-Row Ball

Weight : 13kg

Noisy : 43dB

Language : English

Purification Class : Class H13

Transport Package : Wood + Carton

Specification : 540*410*220mm

Trademark : shiny-greenspace

Origin : China

HS Code : 8419500090

Production Capacity : 200000

MOQ : Negotiable

Price : Negotiable

Packaging Details : Depends on equipment sizes

Delivery Time : 7-15 working days

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now

350m³/H Positive Pressure Ventilation Unit

Professional Public Toilet Ventilation Air Purification Ceiling Air Disinfection Positive Pressure HVAC for Vertical Installation

Product Specifications

Fresh airflow volume:

350m³/h

Operating power:

50 W

Purification class:

Class H13

Purification efficiency:

>99.9%

Noise value:

<43dB(A)

Heat exchange rate:

Compatible with GB21087 standards

Control mode:

Intelligent operation/touch control

Power input:

220V/50Hz

Product Attributes

Attribute	Value
Model NO.	H902
Layout	Coaxial
Openness	Closed
Installation	Vertical
Transmission Form	Gear
Type	Single-Row Ball
Weight	13kg
Noise	43dB
Language	English
Purification Class	Class H13
Transport Package	Wood + Carton
Specification	540410220mm
Trademark	shiny-greenspace
Origin	China
HS Code	8419500090
Production Capacity	200000

Product Description

The fresh air system delivers outdoor air with sufficient oxygen into the room after multiple filtration and purification treatments, while simultaneously exhausting indoor stale air. This ensures indoor air remains clean, fresh, and oxygen-rich through continuous 24-hour circulation.

Our motor design follows the "big horse car" concept, featuring an independently developed brushless DC motor with these advantages:

Wide speed range with smooth speed regulation
Strong overload capability
Low energy consumption
Reduced noise levels (35-55dB range)

The excellent housing packaging process ensures the entire unit remains unaffected by electromagnetic interference. The fresh air motor maintains substantial power redundancy during operation, while the matching servo drive circuit keeps the motor operating within its optimal speed curve range. This achieves low energy consumption and minimal noise while meeting all air volume and pressure requirements, guaranteeing an excellent user experience.

Product Images

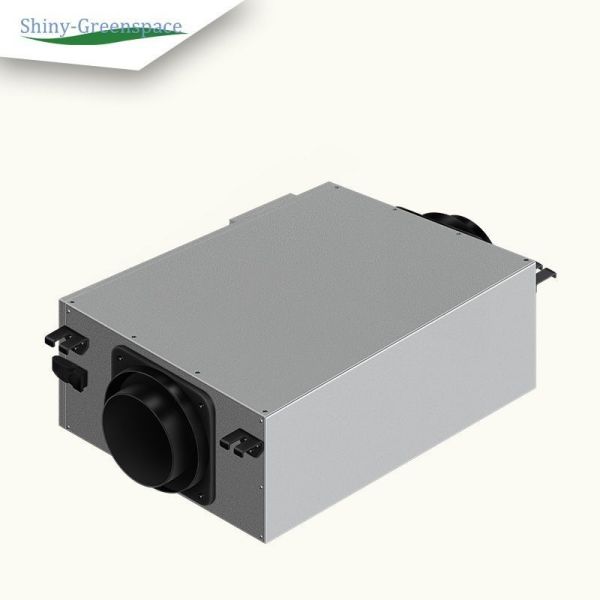

350m3/H Positive Pressure Ventilation Unit HVAC H902 Model
